PCoIP session metrics in AWS
HP Anyware is a product that allows companys to grant remote access to virtual workstations using the PCoIP protocol, which offers a secure, high-definition and highly responsive computing experience when working on a remote desktop that can be hosted both onprem or in the cloud.
When this solution is used in AWS, there are many infrastructure patterns that can be followed to implement it, like this doc shows.
Once your infrastructure is ready and fully functional, your users are ready to connect to their workstations, and the support and troubleshooting phase starts. Even though HP offers some tools to get metrics of a PCoIP session, like the PCoIP Session Statistics Viewer, it can sometimes be challenging to pull those metrics.
In this post we will explore a possible solution to programatically push these metrics to AWS CloudWatch to empower your IT team to support your users.
Approach
The EC2 instances used as workstations run a PCoIP agent (standard or graphic depending on the use case) that periodically saves this information into log files. The strategy we will be using is to configure the AWS CloudWatch Agent in workstations with AWS SSM to push this logs into CloudWatch Logs, apply a CloudWatch Log Filter to send specific log lines to be processed by an AWS lambda that will push the metrics to CloudWatch Metrics.
Implementation
CloudWatch Log group
We will first create a Log group in CloudWatch where all the data is going to be pushed:
cloudwatch.tf
resource "aws_cloudwatch_log_group" "pcoip_logs" {
name = "pcoip"
retention_in_days = 14
tags = var.tags
}
CloudWatch agent configurations
The logs of the agent are located in /var/log/pcoip-agent/ (Linux) or C:\ProgramData\Teradici\PCoIPAgent\logs (Windows), so we need to install and configure the CloudWatch agent to push logs from there. The cofigurations are templates that terraform will parse and save in AWS SSM parameters:
cloudwatch/config_windows.json
{
"logs": {
"logs_collected": {
"files": {
"collect_list": [
{
"file_path": "C:\\ProgramData\\Teradici\\PCoIPAgent\\logs\\*Printing*",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-printing-service",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
},
{
"file_path": "C:\\ProgramData\\Teradici\\PCoIPAgent\\logs\\*pcoip_agent*",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-agent",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
},
{
"file_path": "C:\\ProgramData\\Teradici\\PCoIPAgent\\logs\\*pcoip_vhid*",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-vhid",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
},
{
"file_path": "C:\\ProgramData\\Teradici\\PCoIPAgent\\logs\\*pcoip_server*",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-server",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
}
]
}
},
"log_stream_name": "default_log_stream"
}
}
cloudwatch/config_linux.json
{
"logs": {
"logs_collected": {
"files": {
"collect_list": [
{
"file_path": "/var/log/pcoip-agent/agent.log",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-agent",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
},
{
"file_path": "/var/log/pcoip-agent/session-launcher.log",
"log_group_name": "${log_group}",
"log_stream_name": "{instance_id}-pcoip-launcher",
"timestamp_format": "%Y-%m-%dT%H:%M:%S",
"timezone": "UTC"
}
]
}
},
"log_stream_name": "default_log_stream"
}
}
ssm.tf
resource "aws_ssm_parameter" "cloudwatch_config_linux" {
name = "/cw/workstations/linux"
type = "String"
tags = var.tags
value = replace(templatefile("${path.module}/cloudwatch/config_linux.json", {
log_group = aws_cloudwatch_log_group.pcoip_logs.name
}), "/\n| /", "")
}
resource "aws_ssm_parameter" "cloudwatch_config_windows" {
name = "/cw/workstations/windows"
type = "String"
tags = var.tags
value = replace(templatefile("${path.module}/cloudwatch/config_windows.json", {
log_group = aws_cloudwatch_log_group.pcoip_logs.name
}), "/\n| /", "")
}
Workstations provisioning
To install and configure automatically the CloudWatch agent in workstations, we will use AWS Systems Manager (AWS SSM). We will create an AWS SSM document and an association between this document and our workstations.
It is important to have into account the prerequisites AWS SSM Agent has to work in an EC2 instance.
We will need to ensure SSM agent is running in our workstations (it is included in new AWS provided AMIs), connectivity between the instances and SSM service and a correct policy in the Instance profile that allows the agent to work.
ssm/cloudwatch_agent_provisioning.yaml
schemaVersion: '2.2'
description: 'Install and run CW agent'
mainSteps:
- action: aws:configurePackage
name: InstallCWAgent
inputs:
name: AmazonCloudWatchAgent
action: Install
- action: aws:runDocument
name: ConfigureCWAgentLinux
precondition:
StringEquals:
- platformType
- Linux
inputs:
documentType: SSMDocument
documentPath: AmazonCloudWatch-ManageAgent
documentParameters:
action: configure
optionalConfigurationSource: ssm
optionalConfigurationLocation: "${linux_ssm_parameter}"
- action: aws:runDocument
name: ConfigureCWAgentWindows
precondition:
StringEquals:
- platformType
- Windows
inputs:
documentType: SSMDocument
documentPath: AmazonCloudWatch-ManageAgent
documentParameters:
action: configure
optionalConfigurationSource: ssm
optionalConfigurationLocation: "${windows_ssm_parameter}"
ssm.tf
resource "aws_ssm_document" "cloudwatch_agent" {
name = "install-cloudwatch-agent"
document_type = "Command"
document_format = "YAML"
tags = var.tags
content = templatefile("${path.module}/ssm/cloudwatch_agent_provisioning.yaml", {
linux_ssm_parameter = aws_ssm_parameter.cloudwatch_config_linux.name
windows_ssm_parameter = aws_ssm_parameter.cloudwatch_config_windows.name
})
}
resource "aws_ssm_association" "cloudwatch_agent" {
name = aws_ssm_document.cloudwatch_agent.id
association_name = "install-cloudwatch-agent-in-workstations"
targets {
key = "tag:${var.workstation_tag.key}"
values = [var.workstation_tag.value]
}
}
Filtering and parsing logs
Now that we have the workstations logs in CloudWatch Logs we can create a log subscription filter that will send specific logs of the log group to a lambda for processing:
cloudwatch.tf
resource "aws_cloudwatch_log_subscription_filter" "pcoip_metrics" {
depends_on = [aws_lambda_permission.allow_trigger_metrics_publisher]
name = "pcoip-metrics"
log_group_name = aws_cloudwatch_log_group.pcoip_logs.name
filter_pattern = "?MGMT_PCOIP_DATA ?VGMAC ?MGMT_IMG"
destination_arn = module.metrics_publisher.lambda_function_arn
}
resource "aws_lambda_permission" "allow_trigger_metrics_publisher" {
action = "lambda:InvokeFunction"
function_name = module.metrics_publisher.lambda_function_arn
principal = "logs.${data.aws_region.current.name}.amazonaws.com"
source_arn = "${aws_cloudwatch_log_group.pcoip_logs.arn}:*"
}
lambda.tf
module "metrics_publisher" {
source = "terraform-aws-modules/lambda/aws"
version = "4.2.0"
function_name = "pcoip-metrics-publisher"
description = "Lambda to process PCoIP logs and push metrics to CloudWatch"
handler = "main.lambda_handler"
runtime = "python3.8"
source_path = "${path.module}/lambda/metrics_publisher"
artifacts_dir = "${path.module}/builds"
publish = true
recreate_missing_package = true
ignore_source_code_hash = true
attach_policy_statements = true
cloudwatch_logs_retention_in_days = 14
tags = var.tags
policy_statements = {
cloudwatch = {
effect = "Allow"
actions = ["cloudwatch:PutMetricData"]
resources = ["*"]
}
}
environment_variables = {
metrics_namespace = var.metrics_namespace
}
}
lambda/metrics_publisher/main.py
import base64
import json
import zlib
import boto3
import re
import os
from datetime import datetime
NAMESPACE = os.environ.get("metrics_namespace")
cw_client = boto3.client("cloudwatch")
# Events based on https://help.teradici.com/s/article/1395
events_definitions = [
{
"event_pattern": ".*MGMT_PCOIP_DATA.*Tx thread info.*(?P<bw_group>bw limit\D*(?P<bw>[\d|\.]*))\W*(?P<avg_tx_group>avg tx\D*(?P<avg_tx>[\d|\.]*))\W*(?P<avg_rx_group>avg rx\D*(?P<avg_rx>[\d|\.]*)).*",
"name": "Bandwidth metrics",
"metrics": [
{"Name": "PCoIPBandwidthLimit", "Unit": "Kilobytes/Second", "group": "bw"},
{"Name": "PCoIPAvgTx", "Unit": "Kilobytes/Second", "group": "avg_tx"},
{"Name": "PCoIPAvgRx", "Unit": "Kilobytes/Second", "group": "avg_rx"},
],
},
{
"event_pattern": ".*MGMT_PCOIP_DATA.*Tx thread info.*(?P<rtt_group>round trip time\D*(?P<rtt>[\d|\.]*))\W*(?P<variance_group>variance\D*(?P<variance>[\d|\.]*))\W*(?P<rto_group>rto = (?P<rto>[\d|\.]*))\W*(?P<last_group>last\D*(?P<last>[\d|\.]*))\W*(?P<max_group>max\D*(?P<max>[\d|\.]*)).*",
"name": "Latency metrics",
"metrics": [
{"Name": "PCoIPRoundTripTime", "Unit": "Milliseconds", "group": "rtt"},
{"Name": "PCoIPVariance", "Unit": "Milliseconds", "group": "variance"},
],
},
{
"event_pattern": ".*VGMAC.*Stat frms\W*(?P<R>R\D*(?P<r_a>[\d|\.]*)/(?P<r_i>[\d|\.]*)/(?P<r_o>[\d|\.]*))\W*(?P<T>T\D*(?P<t_a>[\d|\.]*)/(?P<t_i>[\d|\.]*)/(?P<t_o>[\d|\.]*)).*(?P<loss>Loss\D*(?P<r_loss>[\d|\.]*)%/(?P<t_loss>[\d|\.]*)%).*",
"name": "Packet loss metrics",
"metrics": [
{"Name": "PCoIPPackeLossR", "Unit": "Percent", "group": "r_loss"},
{"Name": "PCoIPPackeLossT", "Unit": "Percent", "group": "t_loss"},
],
},
{
"event_pattern": ".*MGMT_PCOIP_DATA.*ubs-BW-decr\W*(?P<decrease_loss_group>Decrease\D*(?P<decrease_loss>[\d|\.]*))\W*(?P<current_group>current\D*(?P<current>[\d|\.]*))\W*(?P<active_group>active\D*(?P<active_from>[\d|\.]*)\D*(?P<active_to>[\d|\.]*))\W*(?P<adjust_factor_group>adjust factor\D*(?P<adjust_factor>[\d|\.]*)%)\W*(?P<floor_group>floor\D*(?P<floor>[\d|\.]*))\W*",
"name": "Floor metrics",
"metrics": [],
},
{
"event_pattern": ".*MGMT_IMG.*log \(SoftIPC\).*(?P<tbl_group>tbl\W*(?P<tbl>[\d|\.]*))\W*(?P<fps_group>fps\W*(?P<fps>[\d|\.]*))\W*(?P<q_group>quality\W*(?P<quality>[\d|\.]*)).*",
"name": "Image metrics",
"metrics": [
{"Name": "PCoIPQuality", "Unit": "Percent", "group": "quality"},
{"Name": "PCoIPFPS", "Unit": "Count", "group": "fps"},
{"Name": "PCoIPTBL", "Unit": "Count", "group": "tbl"},
],
},
{
"event_pattern": ".*MGMT_IMG.*log \(SoftIPC\).*(?P<group1>bits\/pixel\W*(?P<bits_pixel>[\d|\.]*))\W*(?P<group2>bits\/sec\W*(?P<bits_sec>[\d|\.]*))\W*(?P<group3>MPix\/sec\W*(?P<mpix_sec>[\d|\.]*)).*",
"name": "Image metrics",
"metrics": [
{"Name": "PCoIPBitsPerPixel", "Unit": "Count", "group": "bits_pixel"},
{"Name": "PCoIPBitsPerSec", "Unit": "Count", "group": "bits_sec"},
{"Name": "PCoIPMpixPerSec", "Unit": "Count", "group": "mpix_sec"},
],
},
]
def decode_event(event):
decoded_event = base64.b64decode(event)
decoded_event = zlib.decompress(decoded_event, 16 + zlib.MAX_WBITS).decode("utf-8")
decoded_event = json.loads(decoded_event)
return decoded_event
def convert_to_number(x):
try:
return int(x)
except:
return float(x)
def handle_event(event, instance_id, match, timestamp):
# Get instance name from instance id
for metric in event["metrics"]:
cw_client.put_metric_data(
Namespace=NAMESPACE,
MetricData=[
{
"MetricName": metric["Name"],
"Dimensions": [
{"Name": "InstanceId", "Value": instance_id},
],
"Value": convert_to_number(match.group(metric["group"])),
"Unit": metric["Unit"],
"Timestamp": timestamp,
},
],
)
def lambda_handler(event, context):
# Decode message sent by CloudWatch
decoded_event = decode_event(event["awslogs"]["data"])
print(decoded_event)
# Get relevant data
log_stream = decoded_event["logStream"]
log_events = decoded_event["logEvents"]
instance_id = re.search("i-[a-zA-Z0-9]{17}", log_stream).group(0)
# Iterate over all messages
for log_event in log_events:
message = log_event["message"]
timestamp = datetime.utcfromtimestamp(
int(log_event["timestamp"]) / 1000
).strftime("%Y-%m-%dT%H:%M:%S.%fZ")
# Iterate over messages patterns
for event_definition in events_definitions:
# Find a match with any of the regex definitions
match = re.search(event_definition["event_pattern"], message)
if match:
print(
"Event matched!",
{"event_type": event_definition["name"], "message": message},
)
# Push metric
handle_event(event_definition, instance_id, match, timestamp)
break
Results

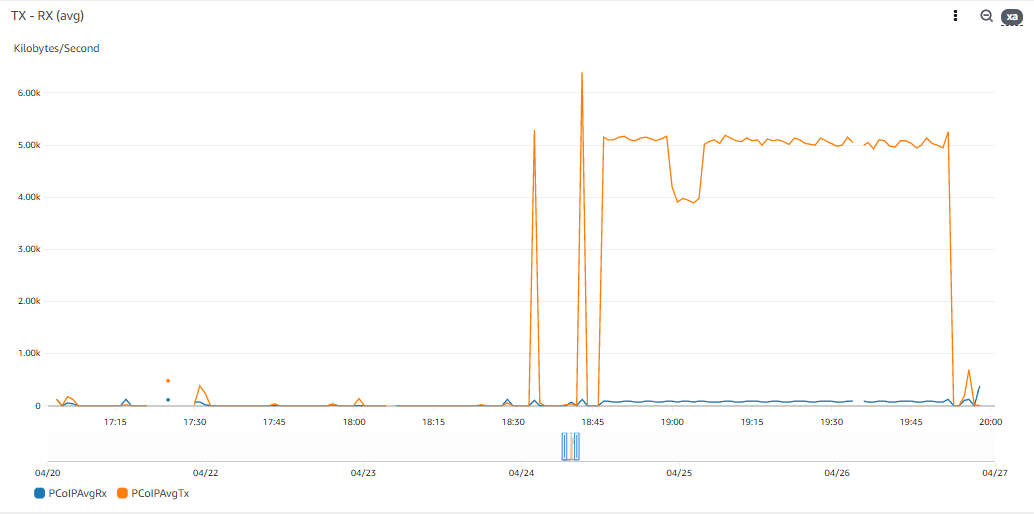

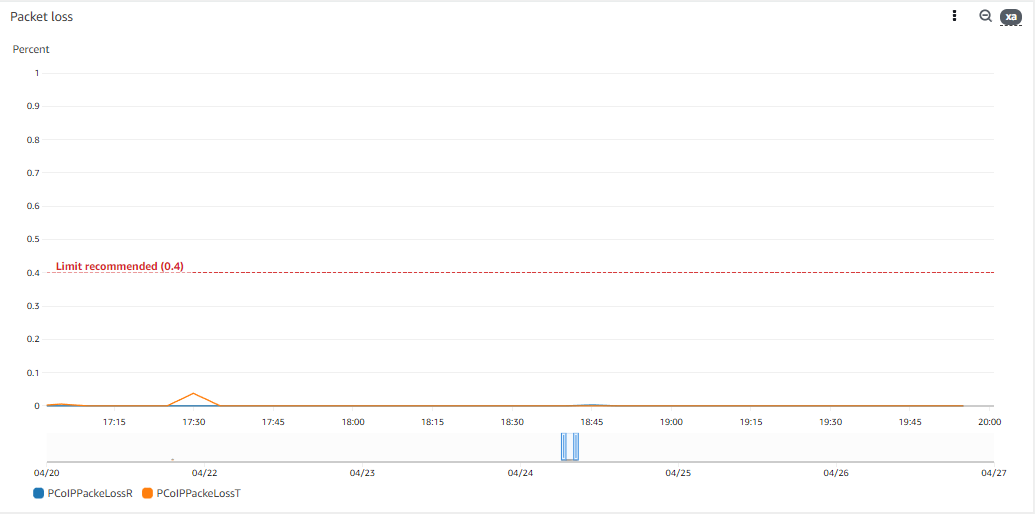

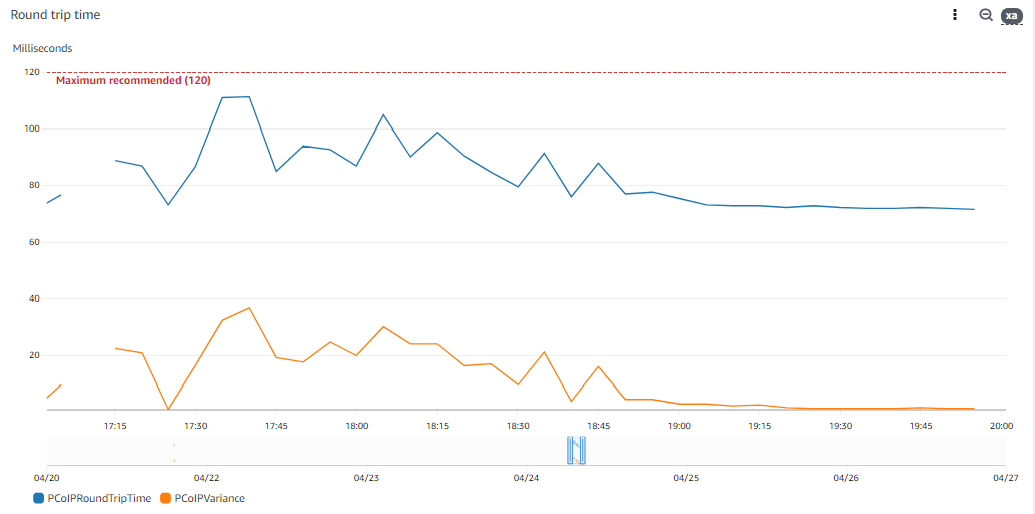

These are some metrics extracted from a workstation running an active PCoIP session:
TL;DR
PCoIP sessions metrics can be programatically pushed from workstations’ PCoIP agent logs using AWS Systems Manager, AWS CloudWatch and AWS Lambda.
AWS Systems Manager is used to install and configure the CloudWatch agent in the workstations; and to store cloudwatch configurations in AWS SSM parameters.
AWS CloudWatch agent is used to push logs from workstations to AWS CloudWatch logs; AWS CloudWatch Log Subscription is used to filter logs and execute a processing lambda; AWS CloudWatch Metrics is used to store the results.
AWS Lambda is used to process filtered logs from AWS CloudWatch Logs and extract metrics from there.
Reference
The code presented in this post is available as a terraform module in https://github.com/MaximilianoAguirre/hp-anyware-session-metrics
You can deploy it in your account using:
module "pcoip_metrics" {
source = "git@github.com:MaximilianoAguirre/hp-anyware-session-metrics"
metrics_namespace = "pcoip"
workstation_tag = {
key = "type"
value = "workstation"
}
}
